dual C/O VIDEO SDI - double change over video SDI



double change over video SDI

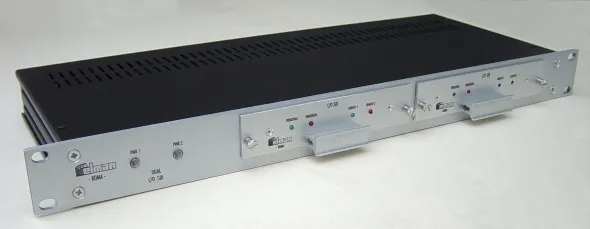

The DUAL C/O VIDEO SDI is a 2x1 dual professional video change over for SDI serial digital signals.
The apparatus is composed of two 2x1 SDI video change over that are independent between them.

The circuits of the two change over are realized on pull-out cards so they can be simply replaced in case of maintenance of the apparatus.
Switching can be started up by two independent remote controls: REM1 (primary) and REM2 (secondary) but only one at a time can work. The REM1 remote control decides to keep the control of the apparatus or to give it to the REM2 secondary remote control.
The apparatus is equipped with a GPI EMERGENZA (GPI emergency) output (back panel) with normally open contact that is started up (closed) when EMERGENZA (emergency) input is selected from the keyboard of the remote control.

The apparatus is realized in a 1 RU metallic box and is equipped with a double power supply that guarantees the working of the DUAL C/O VIDEO SDI even if one of the two power supplies is damaged.



Remote control

Every remote control can be used to control untill 6 DUAL C/O VIDEO SDI.
On the frontal panel of the remote control are placed three buttons equipped with a protection cover against accidental manoeuvres.

From left to right are placed the following keys:



double change over video SDI

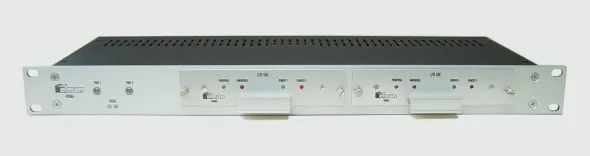

front panel - Dual C/O VIDEO SDI

double change over video SDI

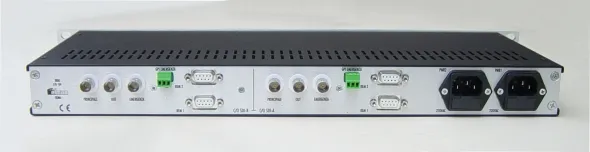

rear panel - Dual C/O VIDEO SDI

double change over video SDI

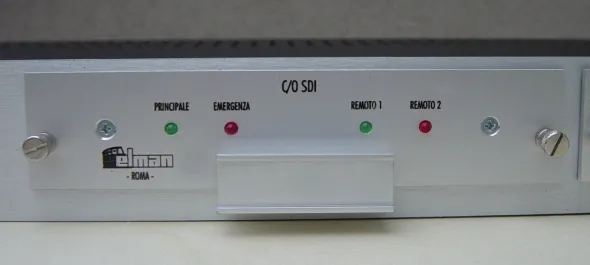

front panel pull-out card

double change over video SDI

rear panel - A sectiondouble change over video SDI

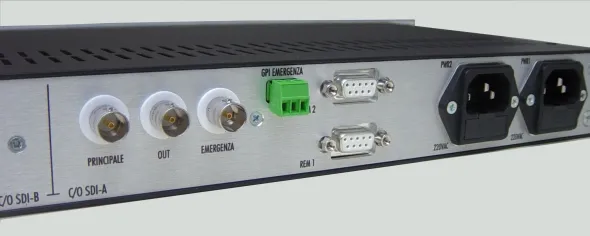

rear panel - B section

double change over video SDI

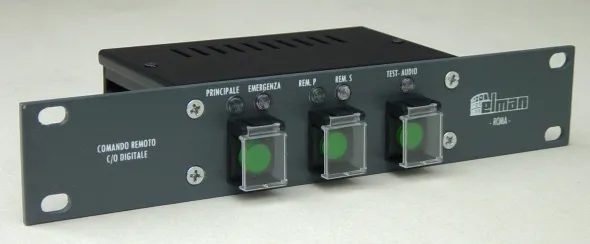

front panel remote control

dual change over video SDI

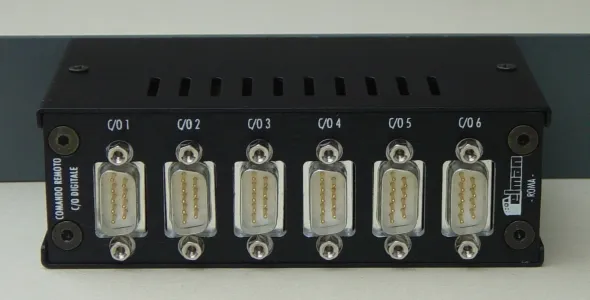

rear panel remote control





In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
