RCVC - PAL radio controlled video clock (DCF 77.5 Khz)
MAIN FEATURES
- wireless synchronization (DCF).
- ease of programming by using the menu of the video.
- programmable up/down timer.
- 4 sizes of characters displayable on the screen.
- Programmable opening and closing time of the contacts.
- RS422 output for display control and satellite clocks.
- RS232 output to synchronize computers.
- adjustable time zone gap.
- automatic adjustment of seasonal time change and leap-year correction.
Applications
- TV station and TV control rooms exact time.
- measurement of times and sequences of dubbing.
- activation of electrical equipment at a preset time.
- synchronization external clocks and computers.
- press rooms and meetings
- Airport and train station waiting rooms
- Etc.
RCVC is a single RU/19" high precision video clock, managed by a microprocessor unique in its kind.
It can be radio synchronized through Long Waves
signal, emitted by the German station DCF77 (Mainflingen - Frankfurt) 50 Kw in
AM at 77.5 Khz.
The synchronization signal is generated by atomic
clocks with cesium oscillator.
RCVC doesn't need any setting for seasonal time
change or leap year correction.
Thanks to its possibility of synchronization,
RCVC can be used on the whole territory reached by DCF77, that is the great part
of European territory.
RCVC displays on the video the following
indications: hour, minute, second, day of the week, day, month and year.
It is possible to display part of the
indications, i.e. only hour and minute.
Without the incoming video signal the insert will
be displayed on the color background video signal generated by RCVC.
RCVC has an adjustable TIMER with count down or
stop-watch functions, very useful e.g. in a dubbing studio.
You may change the character's dimensions through
the menu (4 different types) and shift them along the X and Y axis of the
display.
The characters are white with a black edge to
avoid sparkling effect with the background signal.
Furthermore RCVC can be programmed as a time
controller of the opening and closing time of 2 different relays.
It is available an RS422 output to control remote
displays up to 800 meters from RCVC.
A standard output RS232, programmable up to 9600
baud with 9 pin connector output, provides the synchronization of personal
computers.
RCVC is the right choice to register in the
archive your TV programs, displaying on the images the exact broadcasting time.

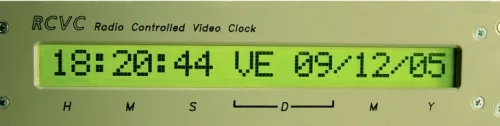

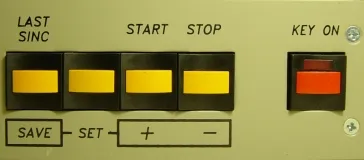

On the front panel you can find: alphanumeric
display, providing date and time information which will be displayed also on the
video, time set up/down push button, normal/bypass push button to bypass the
clock information from the video signal, push button to display the menu on the
video.
On the rear panel you can find: power supply
connector 220 Vac, input and output video connectors, synchronization signal
connectors, D9 connector for RS422 output, D9 connector for RS232 output, output
connector for the 2 relays of the time control.
Design and specifications subject to change
without prior notice.

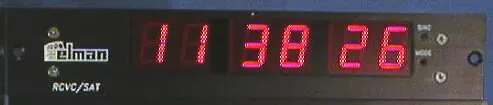

RCVC/RC Remote Console Display
N.B. RCVC uses microprocessor technology, thus, if requested, it can be adapted to the specific requirements of the user.
Options
DCF/RCVC: DCF77 Radio receiver
RAI/RCVC: RAI Radio receiver.
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
