TUTV - professional TV tuner
The ELMAN has realized a series of
apparatuses for modular containers of the Stand
Alone Series , the last born it is the professional TV Tuner with 99
channels Mod. TUTV, that occupies the space of just 1/3 of 19"/1RU and it allows
to receive the television signals in the range of frequencies included between
48.25-863.25 MHzes.
The shielded container also guarantees perfect performances in presence of
strong local electromagnetic fields.

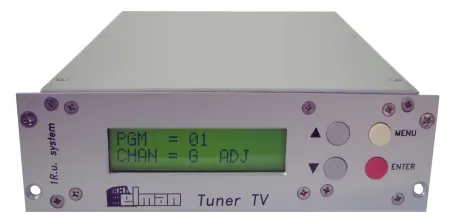

A lcd display placed on the frontal panel facilitates the scheduling of the
channels.
On the back panel there are: the connector for antenna, the BNC for the
composite video output PAL, a connector D 9 poles for the output audio mono, the
connector for 12 Volt power supply.
The TUTV has been created for being used in vehicles equipped for external
television shots or thanks to the reduced dimensions in portable tv production
systems but it can easily be link togheter videoprojectors and monitors.
The TUTV is furnished without the external AC/DC power supply with universal
input and 12 volt output (mod.TUTV/A, optional).

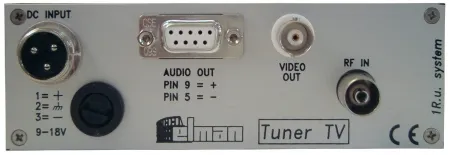

rear of TUTV

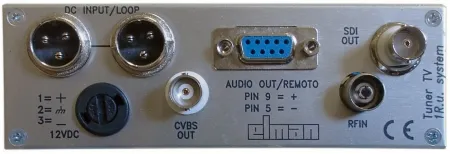

rear of TUTV with SDI option
Features
- European Version PAL standard
- Frequencies coverage in 3 bands (48.25-154.25 Mhz) (161.25-439.25 Mhz) (447.25-863.25 Mhz)
- PLL controlled tuning
- Ultra linear FM PLL demodulator
- Complies with European regulations on radiation, signal handling and immunity ("CENELEC 55020, 55013")
- 1 antenna connector
- 1 mono audio output (D9 connector)
- 1 input for 12V power supply
- External Power supply (optional mod.TUTV/A)
- Dimensions in mm 300x145x44
- Weight: 1,5 kg
That that you see in the picture is a classical broadcast application of the TUTV, inserted in the subrack 19" of the multifunction system by Elman, can see from left:
A) Tuner mod. TUTV;
B) Identification and color bars generator mod. GVI 1224 BC;
C) Audio Source Identification and voice recorder mod. ASI, for to identify the
origin of the source and to measure the connection quality.
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
