CAV2SDI - video format converter
from analog components video (Y-PB-PR) to SDI


video converter analog y-pb-pr to sdi

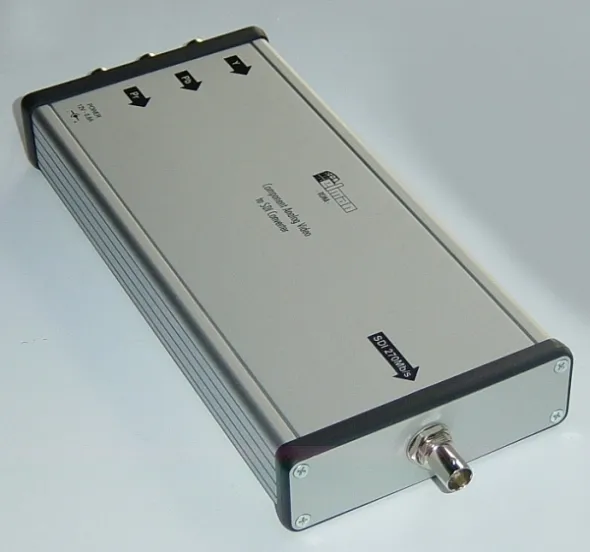

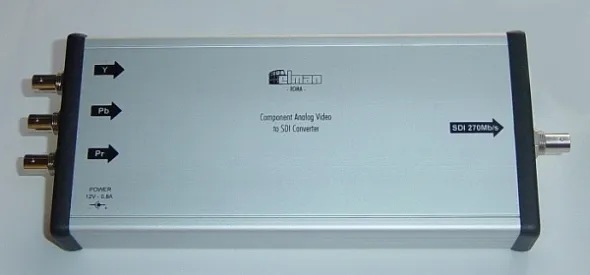

The CAV2SDI is a broadcast quality universal analogue to SDI converter. It use 12 bit over sampling ADC's with 5 lines adaptive comb filtering. Temporal noise reduction and 3D motion adaptive YC separation offer the highest quality conversion on the market. The unit accepts YUV analogue inputs. The unit is housed in an extremely compact and rugged aluminium case and is suitable for both field and studio applications.





Analogue input

SDI output



Temperature range: 0-40 °C
Dimensions: 106 mm x 226 mm x 34 mm
Weight: 185 g


video converter analog y-pb-pr to sdi


video converter analog y-pb-pr to sdi



In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
