double change over SDI 2 x 2
+ SDI to CVBS (analog composite video) converter

dual change over sdi 2x2 - sdi to cvbs converter
click on photo to enlarge

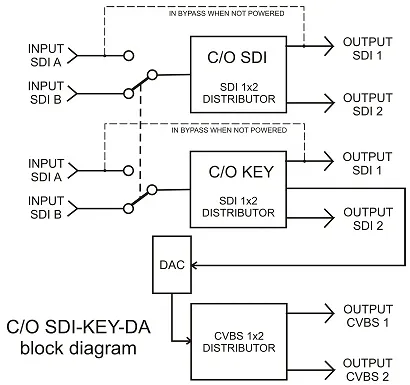

The C/O SDI-KEY-DA is an multifunction apparatus that contains inside, two changes over for digital video signals SDI, with a unique command for the selection of the input channel (A or B).
The first change over has been denominated C/O SDI and the second C/O KEY.
Both the changes over have a proper video distributor with 2 SDI outputs.
The outputs signal of the change over C/O KEY, it is available, besides that in SDI, also on 2 composite analogical outputs (CVBS) thanks to a D/A converter incorporated.
Only for the section C/O SDI, in case of absence of electric energy, the signal of the input A is by-passed with the output 1.
On the anterior panel there are the 2 buttons for the choice of the input signal: A or B and relative signaling leds.
Each of the 2 buttons has a protection to avoid accidental commutations.

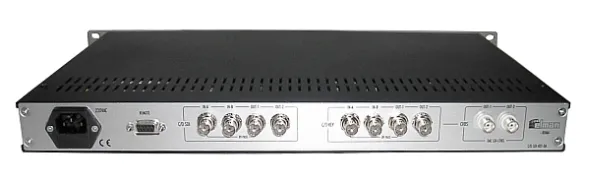

On the back, there are the 10 BNC connectors for the inputs and the outputs of the 2 changes over, the 9 pin D female connector for the connection of the remote control and the IEC connector for AC electric power.
The apparatus is realized in a metallic container for rack, high 1RU 19" and is provided of a embedded power supply.


dual change over sdi 2x2 - sdi to cvbs converter
click on photo to enlarge


dual change over sdi 2x2 - sdi to cvbs converter




In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
