ED09 – High Brightness Display for outside

ED09 – High Brightness Display for outside


The high brightness display ED09 is an apparatus realized in a metal container suited to be used in external places as it is equipped with a particular protection from the water and the bad weather in general.
The inscriptions are realized on interchangeable and non deformable panels and can be customized according to customer needs. (for example: ON AIR,  SILENCE, DO NOT COME IN etc…)
On the lower of container are mounted 2 fans that allow the extraction of hot air that could form inside the ED09 in case of prolonged exposure to sun rays.
The light is given out by a high brightness LED’s panel.
The power supply requested is 48 Volt with a 0,5 ampere absorption.
As you can see in the images Elman can provide a 1RU high power supplier called ED09P4 able to power 4 ED09 at the same time.
The external dimensions of display in mm are: 400 X 200 X 125.


ED09 – High Brightness Display for outside

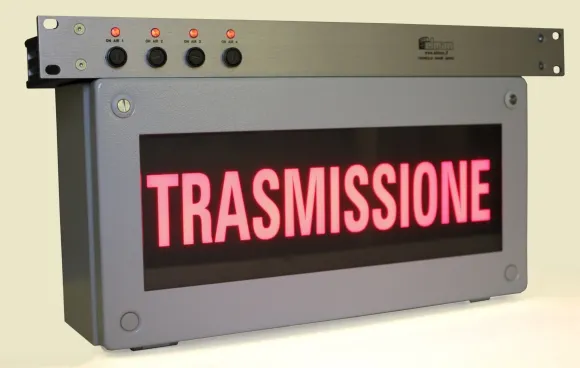

ED09 + ED09P4



ED09 – High Brightness Display for outside

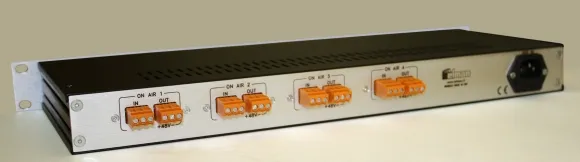

quad power supply ED09P4

In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
