ED10 - indoor display with high brightness LED backlight

display with LED backlight

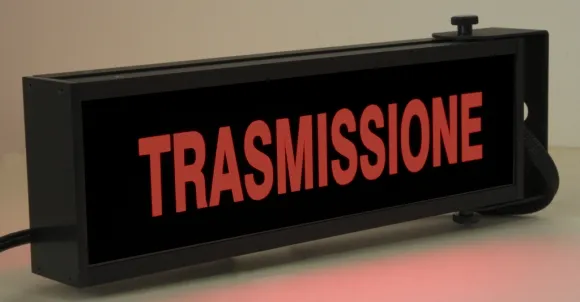

ED10 (click on photo to enlarge)


The high brightness display ED10 is an apparatus fabricated in a metal container suited to be used in indoor places.

Possible applications such as signal light are various: in television studios , theaters, cinemas, dubbing rooms , conference halls , hotels , shopping centers , hospitals , etc ...

The signs are realized on interchangeable and non deformable panels and can be customized according to customer needs (for example: ON AIR, SILENCE, DO NOT COME IN, XRAY, WC, etc...).

The luminous sign has a swivel bracket , so it can be placed over a door along the wall but also mounted on the flag at 90 degrees and since the writing is double ( front and rear ) , can be viewed in the distance in a corridor from both directions .

The light that backlights the sign , is powered by a panel of high-brightness LEDs, can also be seen in a very clear environment , the LEDs compared with the neon light has the advantage of have a low power consumption and longer life .

Power supply is 220V (15.4W) , the display is remote switched on using an external clamping (relays, switches, etc ... ) and there are 2 return wires that send to the remote control (such as a console , a operative center , etc. . .. ) that all the status lights on the display are illuminated. The external dimensions of display in mm are: 350 (l) x 110 (h) x 50 (d).

We can customize the written word or any symbol , even the color of the LED can be changed according to customer requirements .


sign with LED backlight



In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
