Remote PTZx4 - remote control unit for PTZ Canon VC or Sony VISCA videocameras
Elman Remote PTZx4 for the Canon VC-C4 and VC-C50 or Sony with Visca Protocol Pan/Tilt/Zoom Video Cameras is a essential device for improve function in Educational, Teleconferencing and Security Applications.
Conceived for being used for the video surveillance, the television cameras PTZ (Pan, Tilt, Zoom) are also affirmed in the field of the television shots thanks to a quality that is now equal the classical videocameras (they exist in version with 3 ccds and also for high definition), but above all for the fact that being controllable by remote, they don't have need of a cameraman that manages it, they are very small and little invasive especially when the shots are executed in particular environments: churches, places of cult, surgery rooms, etc...
Description

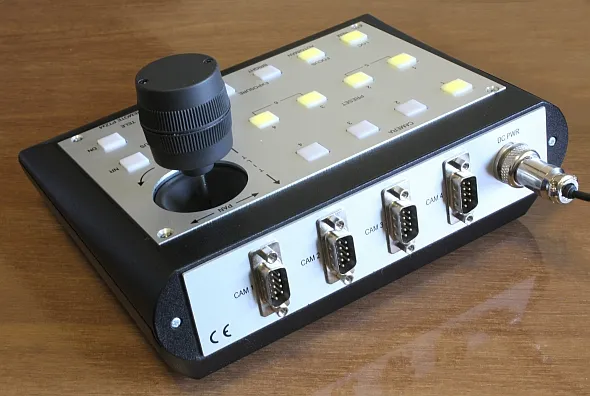

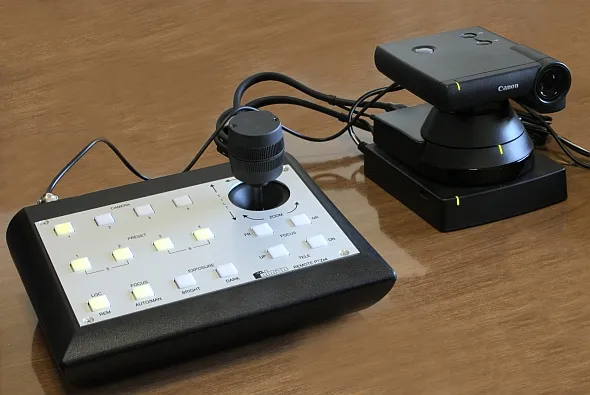

The ELMAN Remote PTZx4 is an RS-232 serial (or RS422) desktop remote control designed to control the Canon VC-C4 and VC-C50 or Sony with Visca Protocol pan/tilt/zoom video cameras.
A joystick with proportional rate technology provides with precision and accuracy simultaneous control of pan, tilt and zoom.
Up to four camera systems can be connected and controlled by one ELMAN Remote PTZx4.
4 switches control iris and focus of the camera lens (focus and exposure).
Six preset memories: pan, tilt, zoom and focus adjustment, for each of the four cameras.
The presets can be recalled by selector switches provided.
Interacting local and remote control panels, RS-232 (or RS422) interconnected, can control the cameras at either location by selecting the Local/Remote switch on front panel.
On request (optionals) various interconnecting cable are available.
Functions
- Proportional Joystick for control pan, tilt and zoom
- Lens Iris Bright/Dark
- Lens Focus Far/Near
- Lens Focus Auto/Man
- 4 Pan/Tilt/Zoom Camera Select Switches
- Six Preset Shot Switches
- Local/Remote Switch
On order specify if remote control has to be interfaced with Canon or Sony (Visca)
videocameras.
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
