UPDOWN converter x9
UP: SD SDI >HD SDI - DOWN: HD SDI > SD SDI + CVBS (Pal/Ntsc)

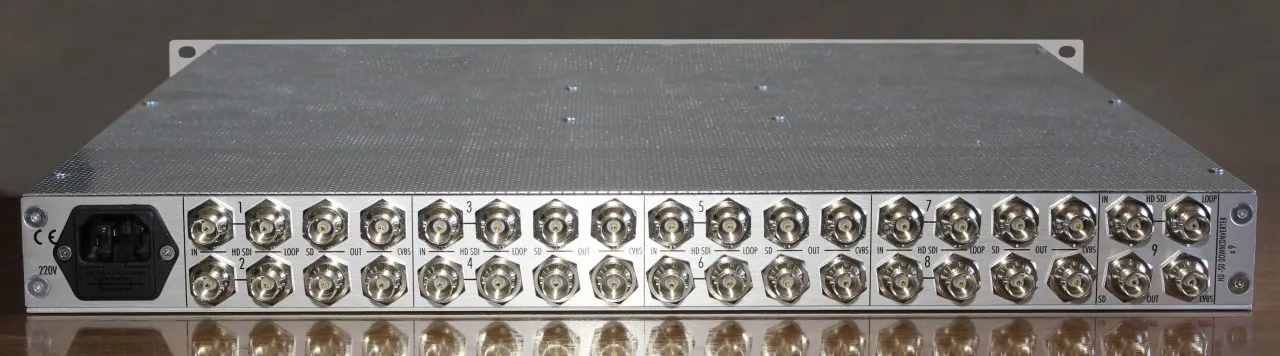

(click on photo to enlarge)
UPDOWN converter x 9 is composed of 9 converters that convert video signals in UP: SD SDI >HD SDI and in DOWN: HD SDI > SD SDI + CVBS composite (Pal/Ntsc). The input signal to a loop reclocked. The container is 1 rack unit, 420 mm deep and weighs 7.6kg.
Suitable for example for connecting a monitoring point with analog inputs to a new system HD (in DOWN mode).
It is possible via the internal switches change each converter 9 as up-converter, this method excludes the composite video output because not HD.
The configuration can be chosen when ordering such as for example 4 UP CONVERTER and 5 DOWN CONVERTER.
The number of converters can vary from 4 to 9 to the customer's request.
Specifications
Connections
- SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
- SDI Video Outputs automatically match the SD, HD and 3 Gb/s SDI video input unless up, down, cross and/or standards conversion is enabled.
- Reference Input Blackburst and TriSync for SD & HD.
- Multi Rate Support Auto detection of HD or standard definition SDI inputs.
- Re-clocking Yes
Standards Video
- SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
- SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
- SDI Video Rates SDI video connections are switchable between standard definition and high definition.
- SDI Video Sampling 4:2:2
- SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision 4:2:2
- SDI Color Space YUV
- SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.

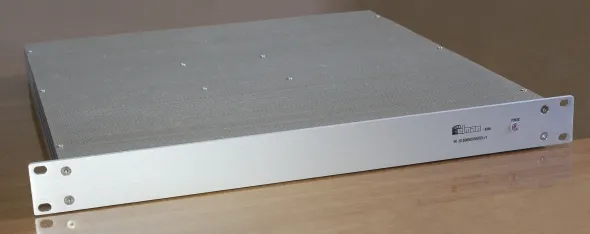

(click on photo to enlarge)
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
