TBP16 - 16 channels intercom full duplex
The TBP16 is the main unit of a handsfree system for professional communication, composed by a intercom TBP16 and from
a maximum of 16 remote intercom stations EL4400/S.
The system is proper to be used during the production of films and television
programs but it can be employed for comment, dubbing and any other purpose.
The TBP16 has an IFB input (interrupted feedback) to be able to listen the audio
signal of the program in processing that is interrupted when begins the
conversation with one of the EL4400/S stations.
Remote station EL4400/S
The TBP16 is normally installed in the control
room or in the comment/speaker room and all the EL4400/Ss in the various
connected rooms (for instance editing rooms).
The start of the connection among a station EL4400/S and the TBP16 it is
executed pressing on the "TALK" lever switch present on the EL4400/S; to
happened connection, the corresponding led on TBP16 is on, if in this
circumstance, another intercom activates the lever switch "TALK", the
corresponding led on TBP16 flashes but the connection is not activated, the
second EL4400/S remains in stand-by up to when the first conversation is not
completed.
The principle of functioning is based on a priority system, the EL4400/S linked
to the connector number 1 has the highest priority, the number 16 that lowest.
If the EL4400/Ss that activate an request are two, the EL4400/S with lowest
priority has to attend the end of the conversation of the EL4400/S with highest
priority The connection with the stations EL4400/S happens through particular
XLR connectors with which it has been possible keep down the height dimension of
the TBP16 in only 2RU 19."

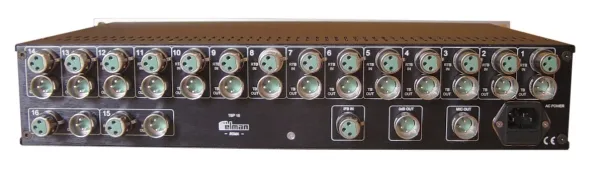

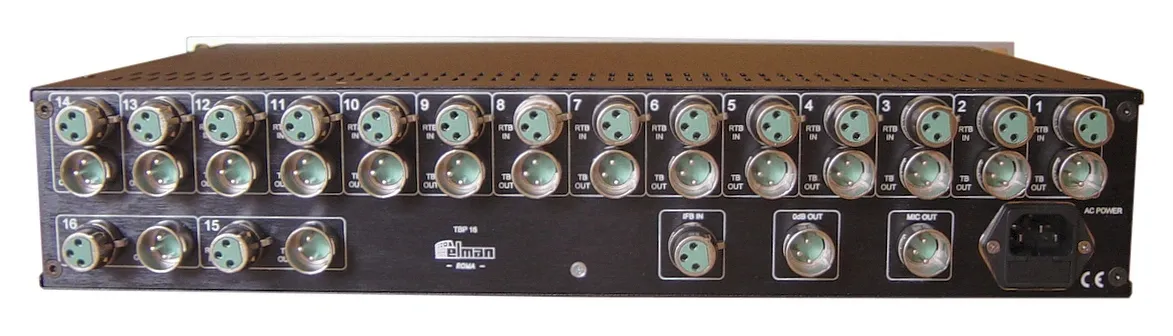

TBP16 - rear (click on photo to enlarge)
The connection among the TBP16 and the EL4400/Ss,
is FULL DUPLEX and HANDSFREE; for
a correct operation it is necessary to regulate the potentiometer set on the
anterior panel of the central intercom (TBP16) so that among the interlocutors
happens.a communication without interruptions.
The TBP16 is endowed with a particular circuit anti Larsen to eliminate the
reentry of the signal audio among loudspeaker and microphone.
The optimal position of the potentiometers must be retouches in the case in
which there is a notable difference of noisiness in the environments where are
placed the intercoms.

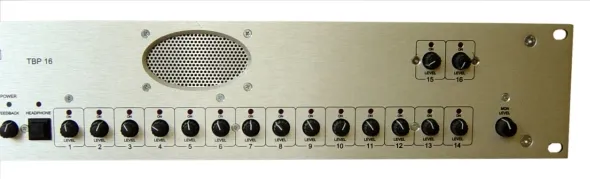

TBP16 front - detail (click on photo to enlarge)

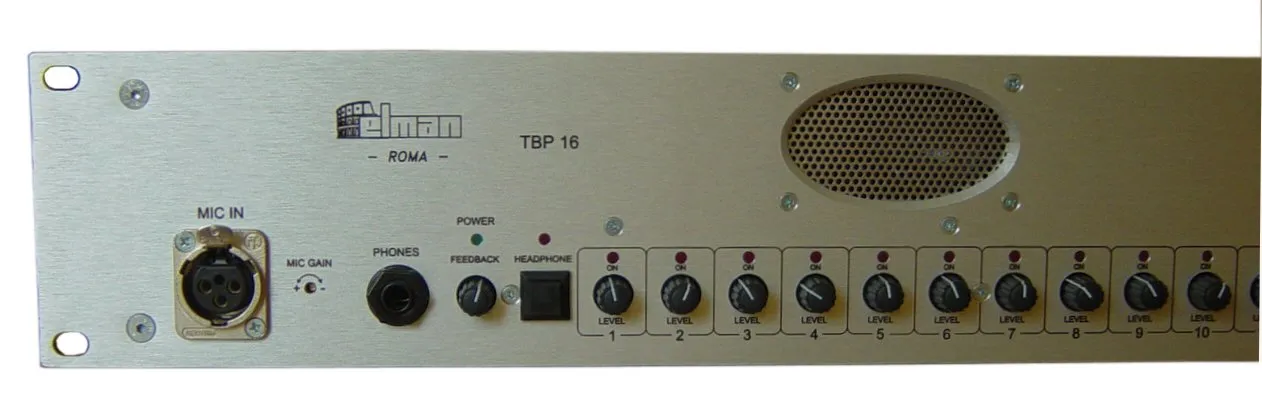

TBP16 front - detail (click on photo to enlarge)

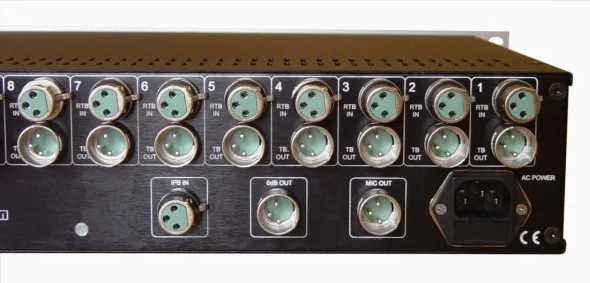

TBP16 rear - detail (click on photo to enlarge)

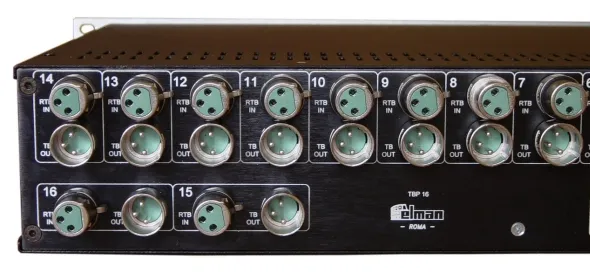

TBP16 rear - detail (click on photo to enlarge)
FEATURES
- 4 wires connection system
- interrupted feedback
- 16 independent channels
- handsfree operation
- headphone push button for the selection of the headphone and exclusion of the loudspeaker
- microphonic input with XLR 3 connector on frontal panel
- microphonic output 0 dB to be able to use the same microphone of the TBP10 for the comment
- Regulation of the microphone level (through trimmer)
- Independent level regulation for each of the 16 channels
- Regulation of the level of general listening
- Amplified output (2 watt) with incorporated loudspeaker
- 0 dB output for external amplifier
- universal power supply (100-240 Vac 70 mA)
- metallic container standard 19" 1RU with 350 mm depth
Microphone Input
- type: balanced and unbalanced
- connector: XLR3 female
- impedance: 2000/4000 ohms
- phantom power: 48 Volt 1.7 mA
Microphone Outputs (MIC OUT)
- balanced output with galvanic and DC isolation
- connector: XLR3 male
- nominal output level: 0 dBu
- maximum output level at the clipping: 17 dBu
Talkback Inputs (RTB In)
- balanced input with galvanic and DC isolation
- connector: XLR3 female
- input impedance: 10 Kohm
- input level for 2 Watt in loudspeaker: 0 dB
- maximum level at the clipping: 12 dB
- bandwidth: -3 dB from 100 Hz to 10 Khz
Talkback Outputs (TB OUT)
- balanced output with galvanic and DC isolation
- connector: XLR3 male
- output nominal level: 0 dBu
- maximum output level at the clipping: 17 dBu
- bandwidth: -3 dB from 100 Hz to 7.5 Khz
Interrupted Feedback Input (IFB In) for audio program
- balanced input with galvanic and DC isolation
- connector: XLR3 female
- input impedance: 10Kohm
- nominal input level for 2 Watt in loudspeaker = 0dB
- maximum level at the clipping: 12dB
- bandwidth: -3dB from 100Hz to 10Khz
0 dB Output
Audio output for the connection to an external amplification system, with 0 dB
level independent from the regulation of the volume of listening on the frontal
panel.
LED of signaling
- 16 leds for view the enabled channels
- led power of feeding
- led headphone: selected bonnet
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
